Architecture

Hybernate is a Kubernetes operator built on controller-runtime. It runs as a single binary inside your cluster and manages workloads through three reconciliation loops.

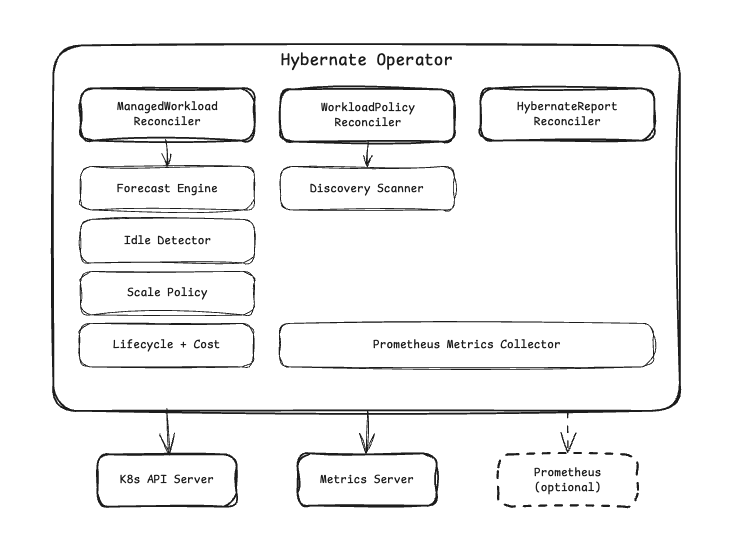

Components

Three Reconcilers

ManagedWorkload Reconciler

The primary reconciler. Watches ManagedWorkload CRs and drives each workload through its lifecycle. On every reconcile it:

1. Validates the target Deployment/StatefulSet exists
2. Detects and handles external replica drift
3. Processes manual overrides (desiredState)
4. Checks pause expiry and PVC retention cleanup
5. Runs idle detection (signals + prediction + grace period)
6. Evaluates scaling decisions
7. Accumulates cost data

Each ManagedWorkload gets its own forecast engine instance, serialized into the CR status so it survives operator restarts.

WorkloadPolicy Reconciler

Watches WorkloadPolicy CRs. On each reconcile it scans the namespace for Deployments and StatefulSets, fetches their metrics from the Kubernetes Metrics API, and classifies each as Active, Idle, or Wasteful.

In auto-manage mode, it creates ManagedWorkload CRs for idle and wasteful workloads using the policy's default settings.

HybernateReport Reconciler

Watches the cluster-scoped HybernateReport singleton. Aggregates counts and cost data across all ManagedWorkloads and publishes cluster-wide Prometheus metrics.

Internal Packages

Package	Responsibility
internal/controller	Reconciliation logic for all three CRDs
internal/forecast	Holt-Winters model, phase lifecycle, confidence scoring, anomaly detection
internal/policy	Idle state machine, scaling constraint evaluation
internal/signal	Signal interface, CPU threshold checker, Prometheus PromQL prober
internal/lifecycle	Pause, resume, scale, destroy operations against K8s API
internal/discovery	Namespace scanning and workload classification
internal/cost	Cost accumulation and estimation
internal/metrics	Prometheus metric definitions and K8s Metrics API reader
internal/export	ManagedWorkload YAML generation from discovered workloads

External Dependencies

Hybernate reads from three external systems:

• Kubernetes API Server: for managing Deployments, StatefulSets, PVCs, and CRs
• Metrics Server: for pod CPU and memory usage (required)
• Prometheus: for custom PromQL signal queries (optional)

Node-Level Cost Savings

Hybernate operates at the workload layer. It does not manage nodes directly. When Hybernate pauses or scales down a workload, it frees CPU and memory on the node. A cluster autoscaler (Cluster Autoscaler, Karpenter, or a managed equivalent) is responsible for detecting underutilized nodes and removing them to realize actual infrastructure cost savings.

See the Cluster Autoscaler Guide for recommended configurations.

Leader Election

When running multiple replicas for high availability, Hybernate uses controller-runtime's leader election (--leader-elect). Only the leader runs reconciliation loops; standby replicas take over if the leader fails.

Security Model

• The operator runs as a non-root user in a distroless container
• RBAC is scoped to the minimum required permissions (see config/rbac/)
• Metrics are served over HTTPS by default with authentication
• HTTP/2 is disabled by default to mitigate known vulnerabilities
